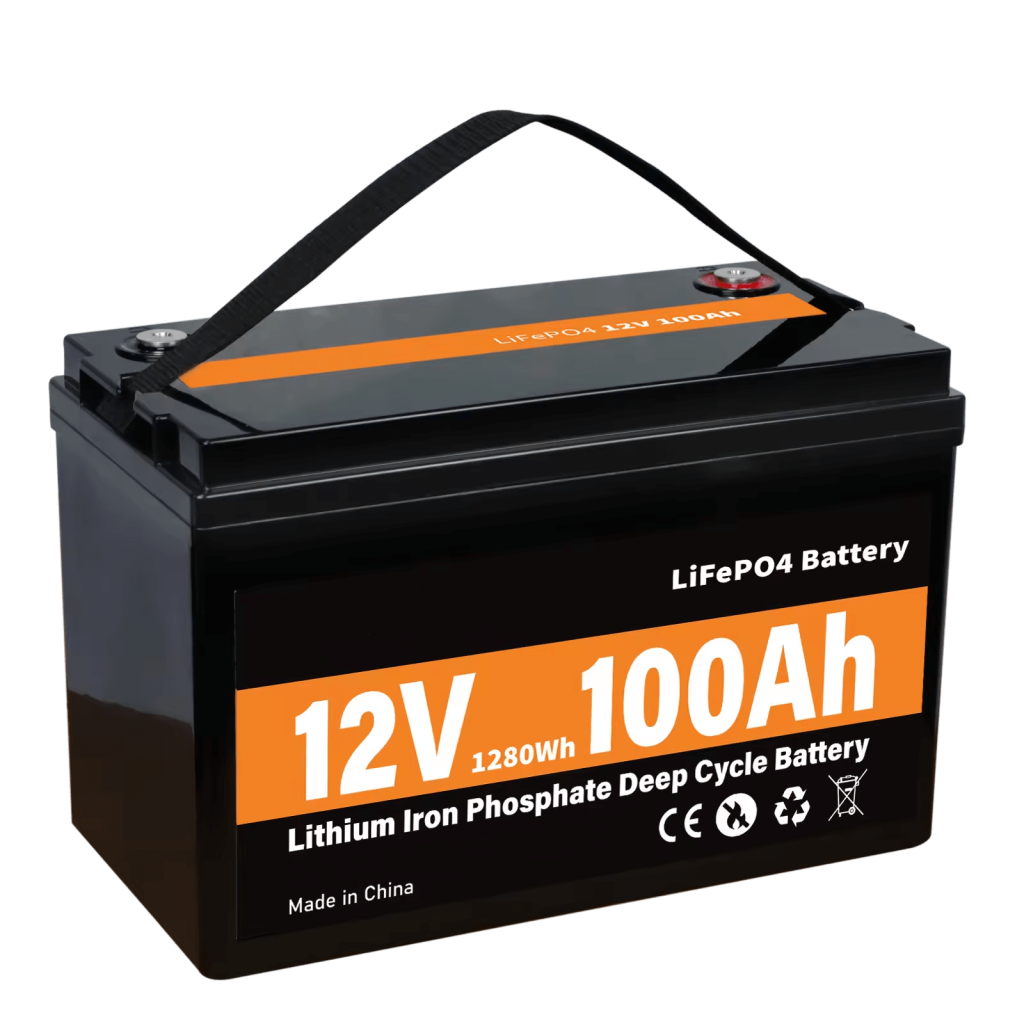

LiFePO4 ថាមពលថ្មផ្ទុកថាមពលពន្លឺព្រះអាទិត្យ 12V 100Ah

2024-02-28 03:19

ការបញ្ជាក់

Overview	Grade A Lifepo4 12V 100Ah 200Ah 24V 100Ah Solar Energy Storage Battery for Home Lithium ion Battery Pack #Grade A Blade Pouch Cell #Built-in 100A BMS #LCD Capacity Display #2 Hrs Charge Up to 80%, 50A Charging Current #IP65 Rated Gives Protection Against Low Pressure Water #5-Year Warranty
លក្ខណៈពិសេស	BASIC SPECIFICATIONS	Model: 12V 100Ah
		Rechargeable:Yes
		Cell Type:LiFePO4 (LFP) Pouch Cell

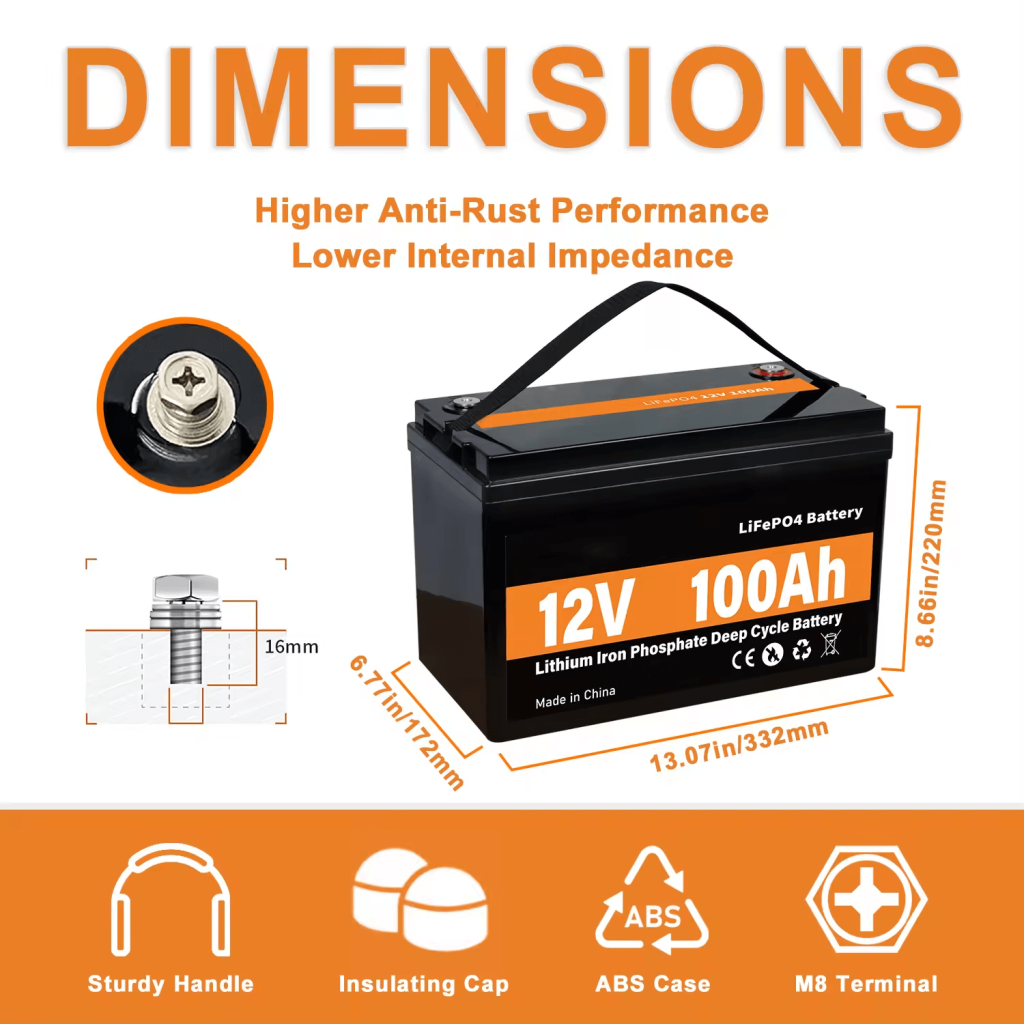

		Dimensions: L13.19 * W7.28 * H8.46 ” L335 * W185 * H215 mm
		Case Material:ABS
		Warranty:5 Years
	ELECTRICAL     SPECIFICATIONS	Nominal Voltage: 12.8V
		Nominal Capacity: 100Ah
		Nominal Energy: 1280 Wh
		Standard Charge Voltage: ≤14.6 V
		Max Charge Current: 50A
		Discharge Cut-Off Voltage: ≥10V
		Max Discharge Current: 100A
		Internal Resistance: ≤30mΩ
	PERFORMANCE SPECIFICATIONS	Cycle Life: ≥4000 Times (80%DoD)
		Service Life: 10 Years (25°C/77°F）
		Charge Temperature Range: 0~45°C (32~113°F)
		Discharge Temperature Range: -20~60°C (-4~140°F)
		Protection: IP65, Built-in BMS



In addition to the LiFePO4 battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.

Key features

1. Vehicle-grade craft, there are multiple isolation and fixing inside the battery pack, which is conducive to heat dissipation
2.  The shell is anti-aging, anti-corrosion, fireproof and waterproof
3. It replaces lead-acid batteries, which is 50% lighter
4.  Wide temperature operation
5.  Safe and reliable, no explosion
6.  Variety of protections, overcharge, overcharge, over current, over-temperature protection
7.  Easy operation, plug and play
8. More than 6000 cycle life

បានបង្កើតឡើងនៅក្នុងការការពារជារួមរបស់ BMS
ការការពារដែលគិតថ្លៃខ្ពស់ជាង
2.Over រំសាយការការពារ
ការការពារ 3.Thermal
ការការពារបន្ទុក 4.Over
ការការពារបច្ចុប្បន្នទាំង ៥

ពាក្យសុំ

កម្មវិធីថ្ម LiFePO4
Widely used in RV, camping car, golfcart, sightseeing car, marine, yacht, solar backup etc.

រោងចក្ររបស់យើង



Packing And Shipment



សំណួរគេសួរញឹកញាប់

1.Q: Do you support a sample order?

A: Yes, welcome to order sample, we have warehouses in the United States and Europe, some samples can be quickly shipped.

2.Q: Does the product have a built-in BMS?

A: Yes, intelligent BMS including JBD/PACE/SmarTec built-in to ensure batteries are under smartly managed.

3.Q: Can your company accept customized order?

A: Of course, customization is our strength.

4.Q: Can the battery pack be compatible with the inverters on the market?

A: Yes sir, our packs are compatible with more than 20 inverter brands on the market including Victron, Goodwe, Solis, Growatts, Voltronics, Deye and other famous brands.

5.Q: How is the Warranty?

A: 5 years up-to its usage.

6.Q: Do you have any certifications?

A: CE, UN38.3 and MSDS, Pack UL1973.

7.Q: How's the delivery way and time?

A: Overseas warehouse (USA & Euro) will make quick delivery for small order. 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.Q: Do you have real factory?

A: Yes, our factory is in Anhui Province. We welcome you to visit our factory.
