ការបញ្ជាក់
ធាតុ | ការបញ្ជាក់ | សុន្ទរកថា |
ទំងន់ផលិតផល | 11KG | |
ទំហំ | 182*132*342(L*W*H) | |
សមត្ថភាព | 23.4AH | 1C discharge |
Platform Voltage | 72V | |
ផ្តាច់វ៉ុលកាត់ផ្តាច់ | 55V | |
វ៉ុលកាត់ផ្តាច់សាក | 84 វ៉ | |
ការសាកថ្មស្តង់ដារ | <=10A | |
ការផ្តាច់ស្តង់ដារ | 50A(continues) | |
Discharging current(MAX) | 80A(10S) | |
ការការពារសៀគ្វីខ្លី | បាទ | |
Short-circuit protection recovery | Disconnect the load | |
Cycel Life | 500th cycle>90% of 1st Cycle Capacity or 1000th cycle>80% of 1st Cycle Capacity, | 25℃,Standard charging; Discharge:1C to 55V |
Discharge Characteristics (by temperature) | 55℃ ≥100% 25℃ =100% 10℃ ≥90% 0℃ ≥80% -10℃ ≥75% -20℃ ≥70 | Discharge: CC 1C to 55V cut-off at each temperature(-20℃ 2.2V cut-off) |
Storage Characteristics | Recoverable capacity≥85% | 100%SOC, discharge 30min at 2C current then storage 28 days at 45℃, recoverable capacity will be tested at 25℃±2℃ |
Use Temperature | Charge:0 to 45℃ Discharge:-20 to 60℃ |
Product Performance Description
Support OEM&ODM

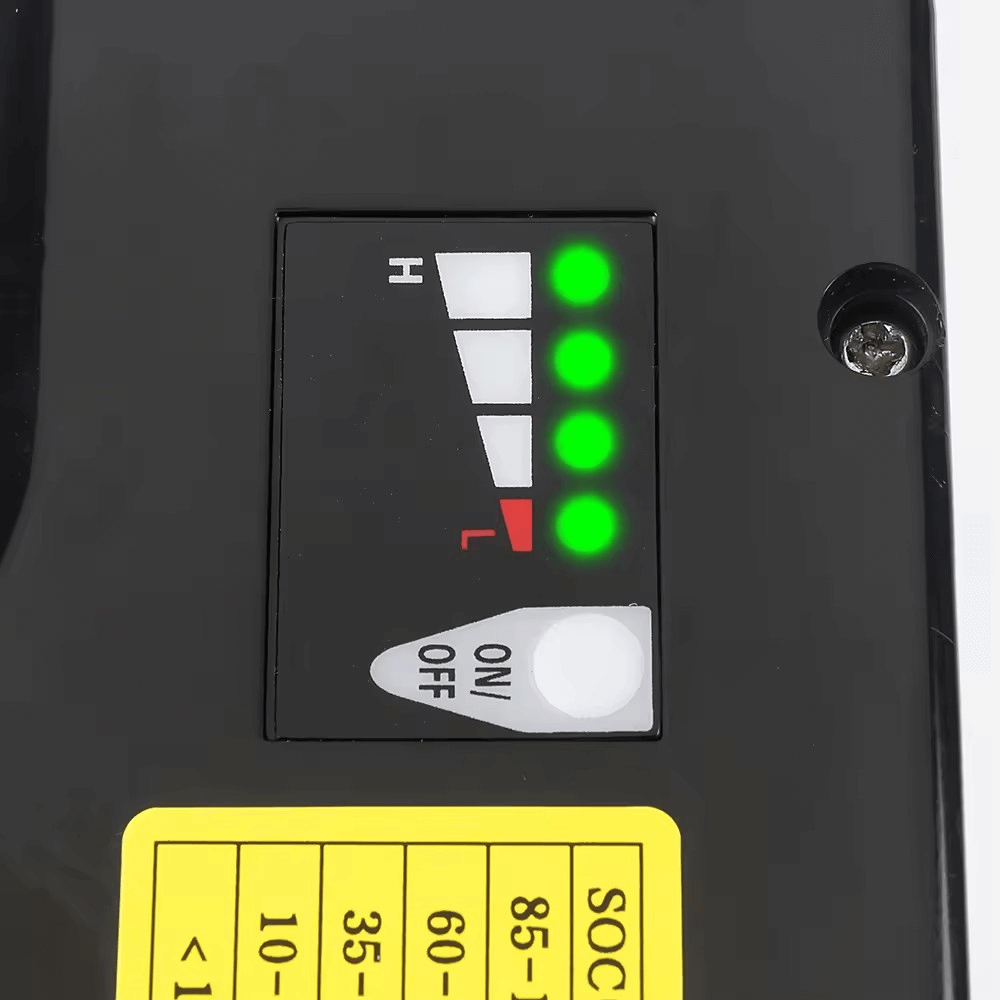

BMS ភ្ជាប់មកជាមួយ:charge protection, discharge protection, over-current protection, temperature, support App control, LCD power display
Complete certification:The factory has passed ISO9001 certification,All products have passed IEC62133 test, before leaving the factory will passed aging test, vibration test, cyclic discharge test, high-speed load test, charge and discharge test.
Global Security Insurance:All lithium battery products have purchased global safety liability insurance, which is underwritten by Ping An Insurance Company of China.
Fast delivery:The production time for sample orders is 7-10 days, And production time for batch orders is based on order quantity. Lead time within 5000Pack is 30Days.
Quality assurance: Sign the quality assurance agreement. Any quality problem, free replenishment.
ពាក្យសុំ
Features of electric motorcycle battery:
- Lighter weight, smaller size.
- High temperature performance.
- Extremely safe, no explosion, no fire under collision.
- Strong over-discharge resistance and charge retention.
- Strong charging acceptance and quick-charging capability.
- Excellent large current discharge performance especially in startup and climbing.
- Large capability and long life for all high power output applications.
- Environmentally friendly non-toxic, non-contaminating, no rare metal.
- Low self-discharge and good discharge performance at low temperature.
រោងចក្ររបស់យើង
ការវេចខ្ចប់និងដឹកជញ្ជូន
សំណួរគេសួរញឹកញាប់
Q:Are you a manufacturer?
A:Yes, ALL IN ONE is a manufacturer.
Q:Can I have a sample order?
A:Yes, we welcome sample order to test and check quality.
Q:What about the lead time?
A:1.Sample needs 3-5 days
- Official order,mass production time needs 2-4 weeks
Q:Do you have any MOQ limit?
A:1. For Samples,we have no MOQ.,1pc can be an order.
2.For wholesales,we have MOQ for better price, normally 100pcs.
Q:How do you ship the goods and how long does it take to arrive?
A: 1.For small quantity,we often ship by express, arrive time is about 3-10days to different countries.
2.For official order,suggest to ship by sea to save cost. To USA, arrive time is about 20-25days,to Europe,arrive time is about 25-30days.
Q: How to proceed with an order?
A: 1.Let us know your requirements or application.
2.We quote according to your requirements or our suggestions.
3.Customer confirms the samples and places a deposit for formal order.
4.We arrange the production.
Q: Is it OK to print my logo on the product?
A:1.For small quantity order or retails, no customized service.
2.For wholesales,customized service is welcome, pls.send us your artwork.
Q: Which certificates do you have?
A: We have CE/FCC/ROHS/UN38.3/MSDS ...etc. Promise a good quality to our customers.
Q: How about warranty?
A: 1 year warranty
